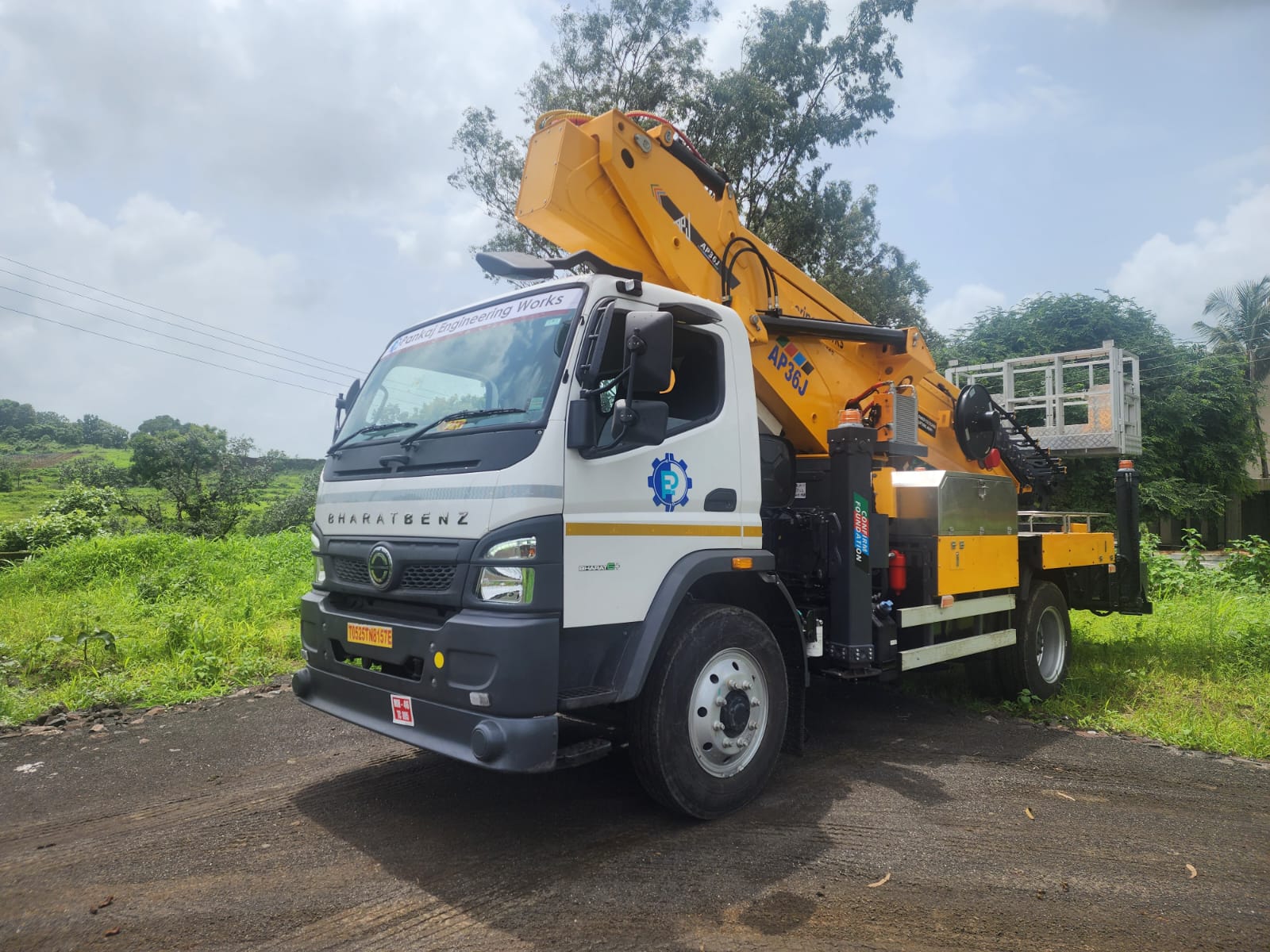

36M AERIAL WORK VEHICLE
MODEL AP36J
APJ Crane Solution Service was established with a mission to provide dependable and innovative solutions in the Truck Mounted Boom Lift segment. Our vision is to make a positive impact on both the industry and our customers through cutting edge equipment and a commitment to excellence.
FEATURED FUNCTIONS AND SAFETY CONFIGURATIONS
*Key Features of the Lifting System: Automatic Interlocking Device Ensures safe boarding and alighting Used for both leg and upper interlocking to prevent mis operation.
*Load Detector: Automatically adjusts the safe working span during operation based on different load capacities.
*Automatic Working Range Limiter: When the working amplitude reaches the specified limit, the movement direction is automatically restricted.
*Wind Speed Detector: Adjusts the operational limit distance automatically based on wind speed conditions.
*Restricted and Unrestricted Support Mode: If the leg landing is not detected in real-time, the lifting arm automatically restricts directional movement for safety.
*Double Rotary Reducer: When equipped with rotary operation, enhances stability significantly.
*Hydraulic Support Legs: Provides a wider support span and a more stable center of gravity compared to a single leg system.
*Dual Amplitude Cylinder Ensures greater load-bearing capacity and stability during vehicle luffing operations.
MAIN TECHNICAL PARAMETERS
- Chassis: Bharat Benz 1217R
- Drive Mode: Rear Drive
- Number of Front Tyres: 2
- Number of Rear Tyres: 4
- Braking Method: Air-break Brake
- Number of Drivers: 3 People
- Temperature Regulation: Air Conditioning
- Emissions: Bharat Stage VI
- GVW: 11990 Kg
- Rated load of working platform: 400kg
- Maximum working height: 36m
- Maximum working range: 20m
Request for Quotation

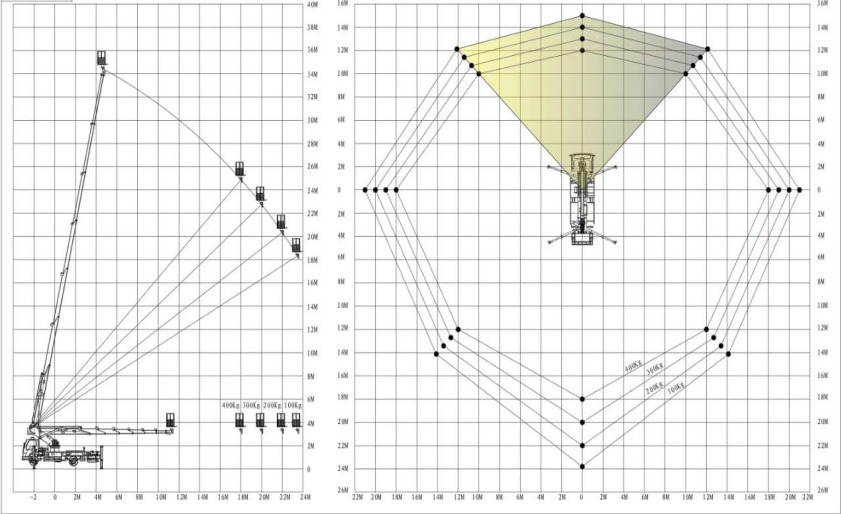

LOAD CHART
MAIN TECHNICAL PARAMETERS
- Operating height at maximum operating range: 20m
- Leg span (lateral): 5370 mm
- Leg span (longitudinal): 5385 mm
- Power take-off system: mechanically operated
- Working platform: 3000*1200*900mm

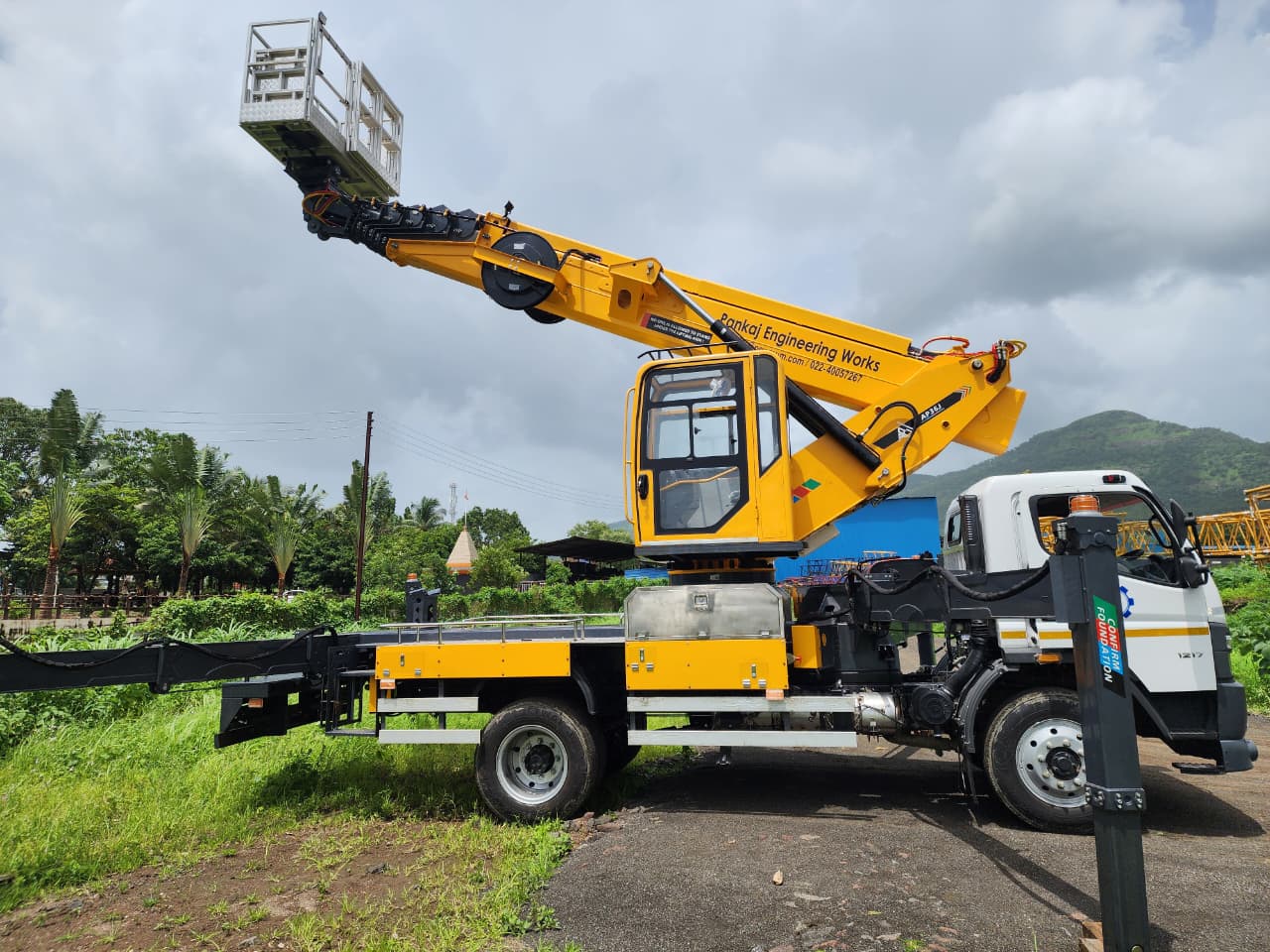

- Boom : Seven-section polygonal synchronous expension
- Rotation device: 360 degree continuous rotation
- Number of variable speed cylinders: 2
- Arm structure: Oil cylinder steel wire rope
Maximum driving speed: 100km/h - Approach angle: 22°
- Departure angle: 5°
- Operation mode: remote control/electric control/manual Equipped with automatic emergency operation
- Control system: CAN bus control system
- Leveling system: Hydrostatic automatic leveling
- Control voltage: 24 V

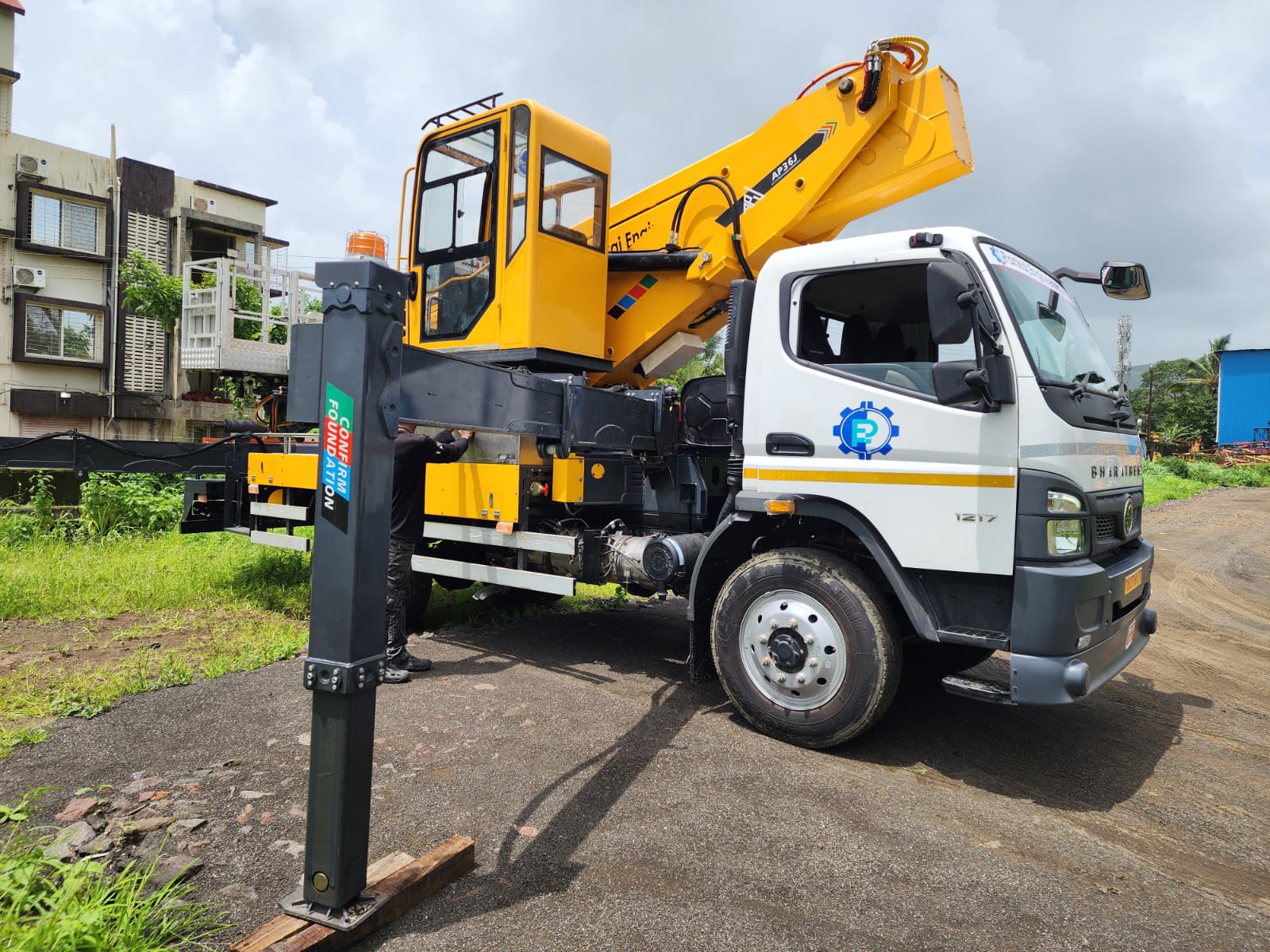

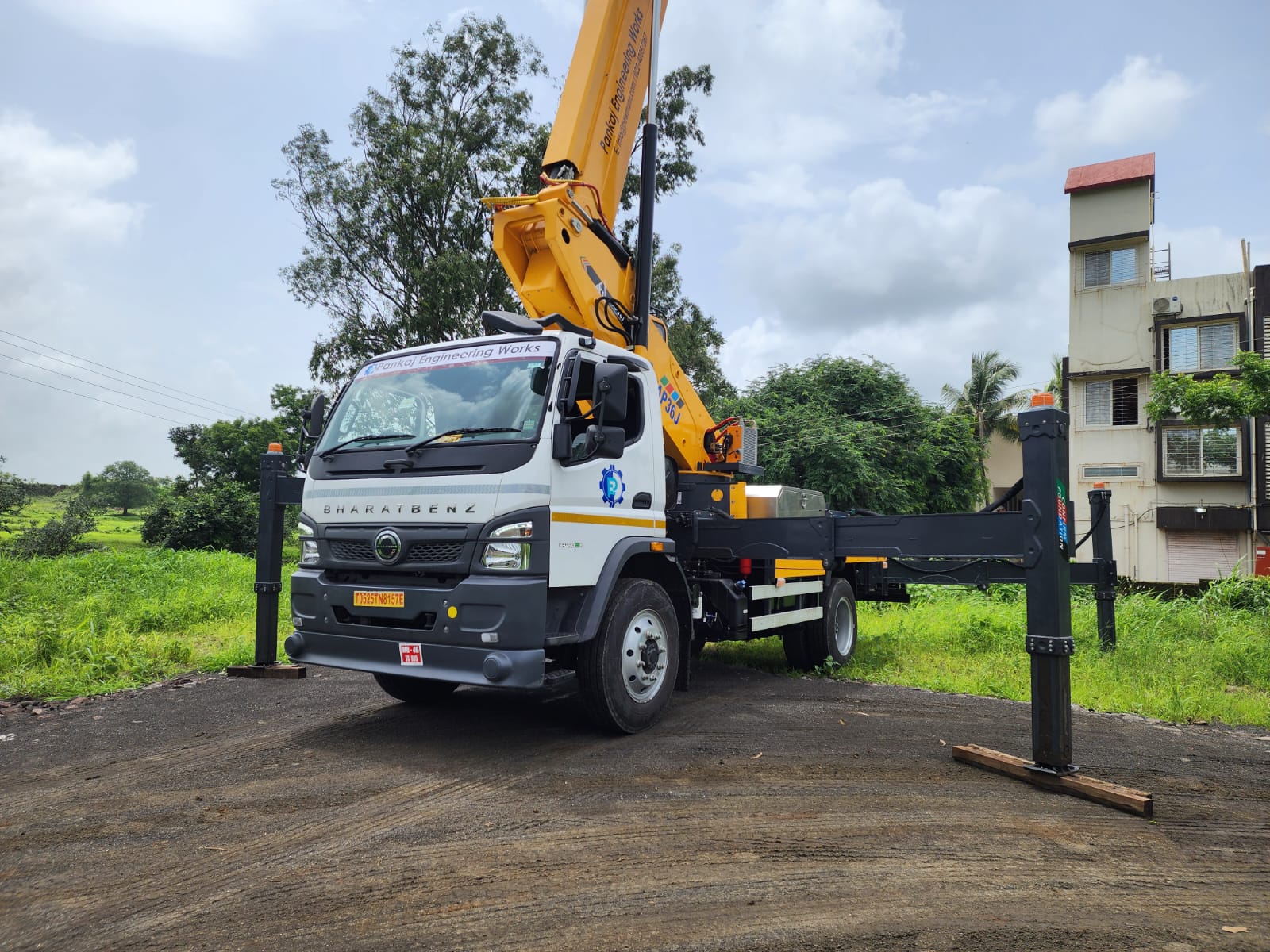

- Legs: X-shaped hydraulic legs, individually adjustable
